Spindle tapes




NYCO®spindle tapes are designed for 4-spindle, 8-spindle or multi-spindle drives and have the advantages of antistatic, wear-resistance and energy-saving, etc. Their splicing is easy and quick.
NYCO®spindle tapes are divided into two types, namely, CNG type and CNPG type. CNC type are suitable respectively for cotton spinning frames; CNPG type for synthetic fibber, woollen and worsted spinning.



Table 2.3.1shows spindle tapes' types and their technical data.

Type
Thickness(mm)
Weight(kg/m2)
Minimum diameter(mm)
Tensile strength (N/mm)
temperature resistance(¡æ)
Coefficient of friction on steel
Continuous antistatic
CNG
0.6
0.55
15
3.5
-20-+100
0.6
Excellent
CNPG
0.9
0.85
20
6.0
-20-+100
0.6
Excellent

Main advantages of NYCO®spindle tapes:
Soft and flexible tape bodies, stable running, no breakage;
Good performance at high speed, good dimensional stability;
Less weak-twist yarn, higher yarn quality;
Permanently antistatic, no fiber sticking;
Our spindle tapes can be supplied according to customers' special specifications. We are ready to give you services on the spot.
Abstracts from application examples' data:
Save energy by 5-10% as averagely measured;
Reduce running noise level of spinning frames by two decibels;
Normal service life:over 2 years;
Outstanding improvement of yarn quality;
With our energy-saving spindle tapes in operation your investment can be returned within 2-4 months
The data in the following tables were tested and provided by our customers.

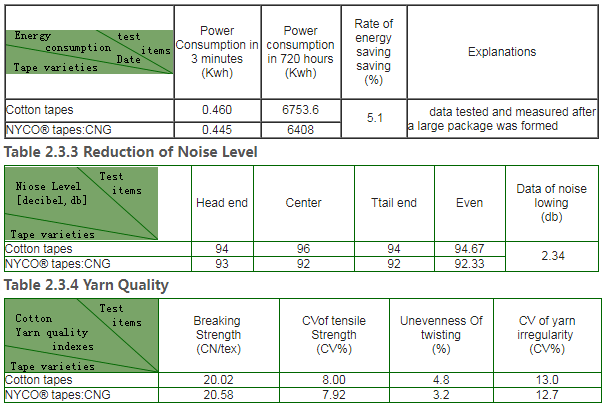

Table 2.3.2 Energy-saving

Power Consumption in 3 minutes
(Kwh)
Power consumption in 720 hours
(Kwh)
Rate of energy saving saving
(%)
Explanations
Cotton tapes 0.460 6753.6  5.1   data tested and measured after a large package was formed
NYCO® tapes:CNG 0.445 6408

Table 2.3.3 Reduction of Noise Level

Head end Center Ttail end Even Data of noise lowing
(db)
Cotton tapes 94 96 94 94.67  2.34
NYCO® tapes:CNG 93 92 92 92.33

Table 2.3.4 Yarn Quality

Breaking
Strength
(CN/tex)
CVof tensile
Strength
(CV%)
Unevenness Of twisting
(%)
CV of yarn irregularity
(CV%)
Cotton tapes 20.02 8.00 4.8 13.0
NYCO® tapes:CNG 20.58 7.92 3.2 12.7
